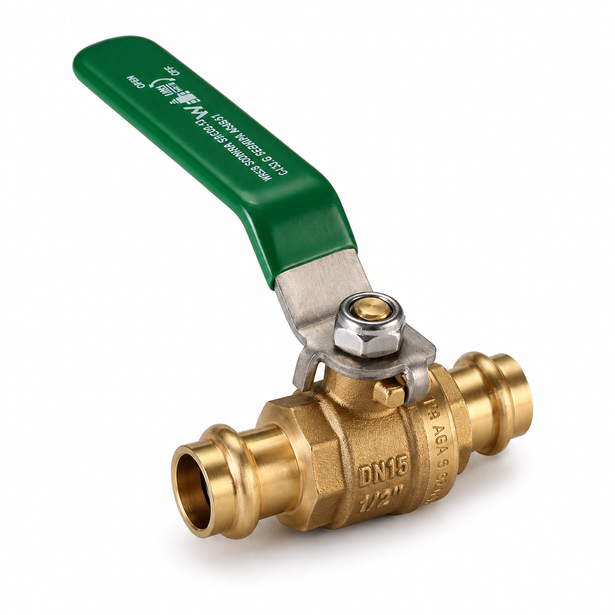

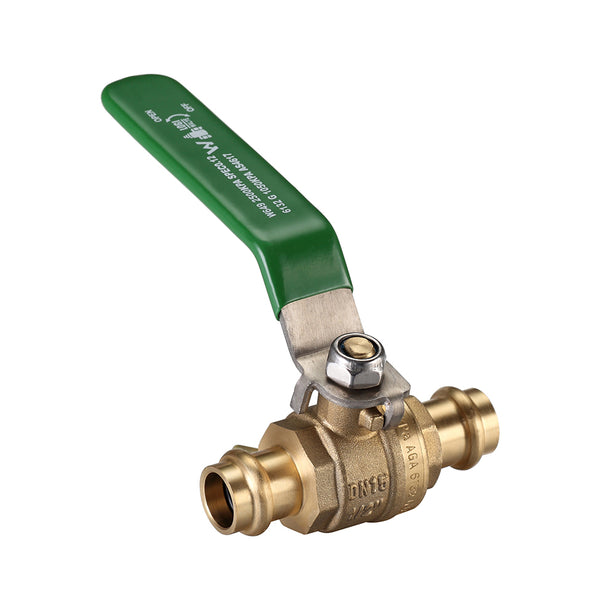

A lead free, WaterMark certified ball valve with copper press ends on both sides, built for isolating hot and cold water services on copper press systems. The stainless steel lever handle gives a positive quarter turn with a clear visual indication of open or closed, and the longer lever is easier to work in plant rooms, risers and ceiling spaces than a butterfly handle.
Full bore construction means no flow restriction through the valve. The body and cap are DR lead free brass with a stainless steel ball and spindle, PTFE seats and FKM o-rings. The spindle is blow-out proof and every valve is pressure tested before it leaves the factory. Available from DN15 through to DN50, so the same valve can be specified across a whole job from fixture branches to main isolation.
Press with Viega, Rothenberger, Novopress, Kempress, Rems or V-profile tooling only.
Specifications
| Connection | Copper press x copper press (CU x CU) |
| Sizes | DN15, DN20, DN25, DN32, DN40, DN50 |
| Handle | Stainless steel lever |
| Bore | Full bore |
| Max working pressure | 2500kPa |
| Working temperature | 1°C to 95°C |
| Body and cap | DR lead free brass |
| Ball and spindle | Stainless steel |
| Seat | PTFE |
| O-ring | FKM |
| Press tooling | Viega, Rothenberger, Novopress, Kempress, Rems and V-profile tools only |
| Warranty | 5 years (extended) |
Dimensions (mm)
| Size | L1 | L2 | H1 | H2 | W |
|---|---|---|---|---|---|
| DN15 | 75 | 101 | 48 | 44 | 30 |
| DN20 | 87 | 101 | 55 | 48 | 37 |
| DN25 | 101 | 101 | 64 | 52 | 46 |
| DN32 | 114 | 140 | 80 | 71 | 58 |
| DN40 | 135 | 140 | 92 | 77 | 69 |
| DN50 | 163 | 140 | 108 | 85 | 84 |
Dimension references match the manufacturer spec sheet drawing. Spec sheet available on request.
Features
- CU x CU press ends, no threading or soldering
- Full bore for unrestricted flow
- Stainless steel lever handle, quarter turn
- Blow-out proof spindle
- DR lead free brass body and cap
- 100% pressure tested
- Rated to 2500kPa and 95°C
- Six sizes, DN15 to DN50
- 5 year extended warranty
Compliance
WaterMark certified, tested and certified to WMTS-012 (Licence 649). Lead free construction to suit NCC Volume Three requirements for drinking water installations.
Applications: Hot and cold water isolation in residential and commercial copper press installations, plant rooms, risers and main service isolation.
