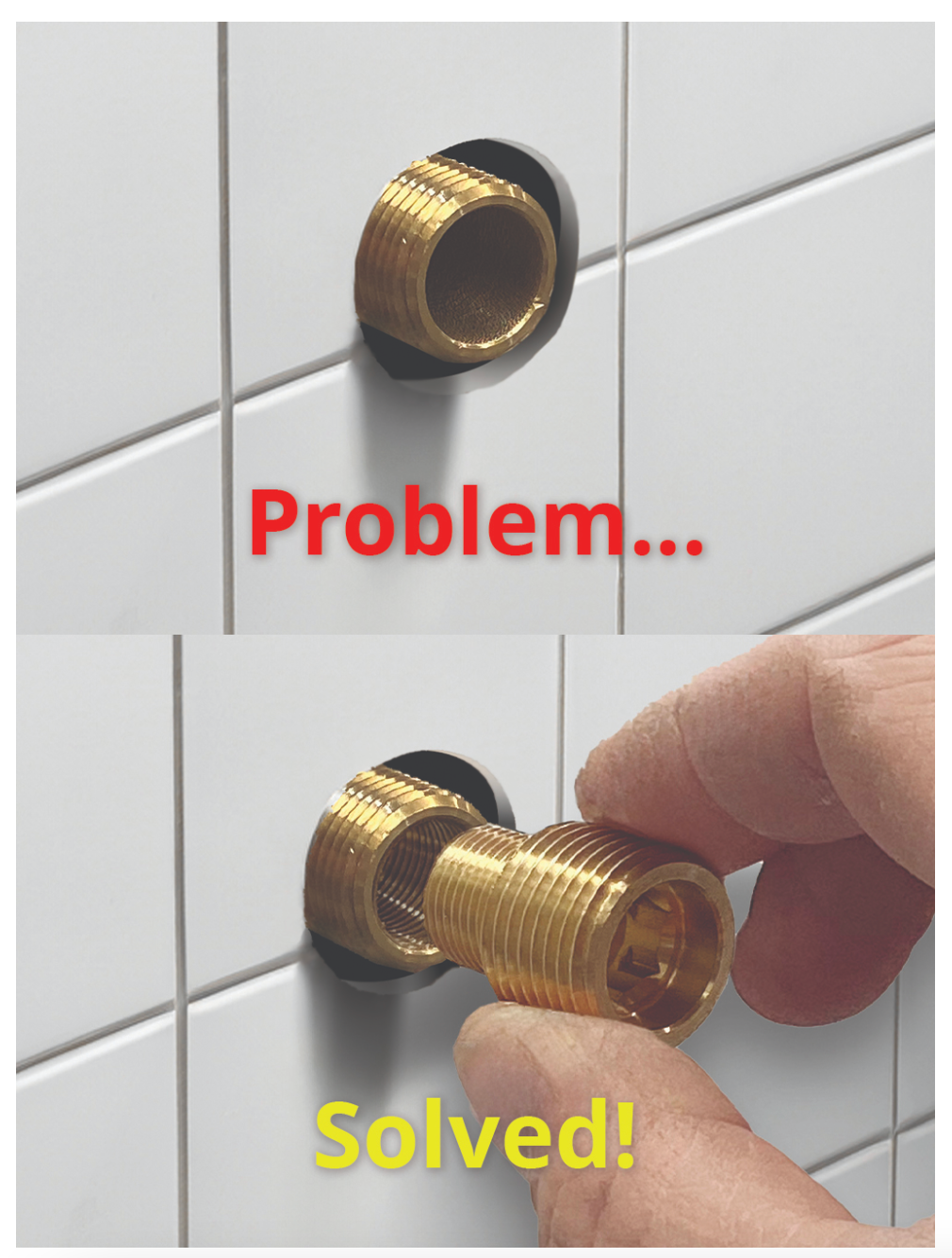

The Plumtool Lugged Elbow Extender Kit lets plumbers extend a lugged elbow fitting with an internal threaded extension, without cutting or disturbing the tile surface. It's a cleaner, faster alternative to chasing out tiles when a fitting sits too far back in the wall.
Why Choose It
- No tile cutting required — extends the fitting internally without disturbing the finished surface
- Installs quickly with the included tools, no special cutting equipment needed
- Clean, flush internal result that pairs neatly with any cover plate finish
- Reduces the risk of tile damage or rework during installation

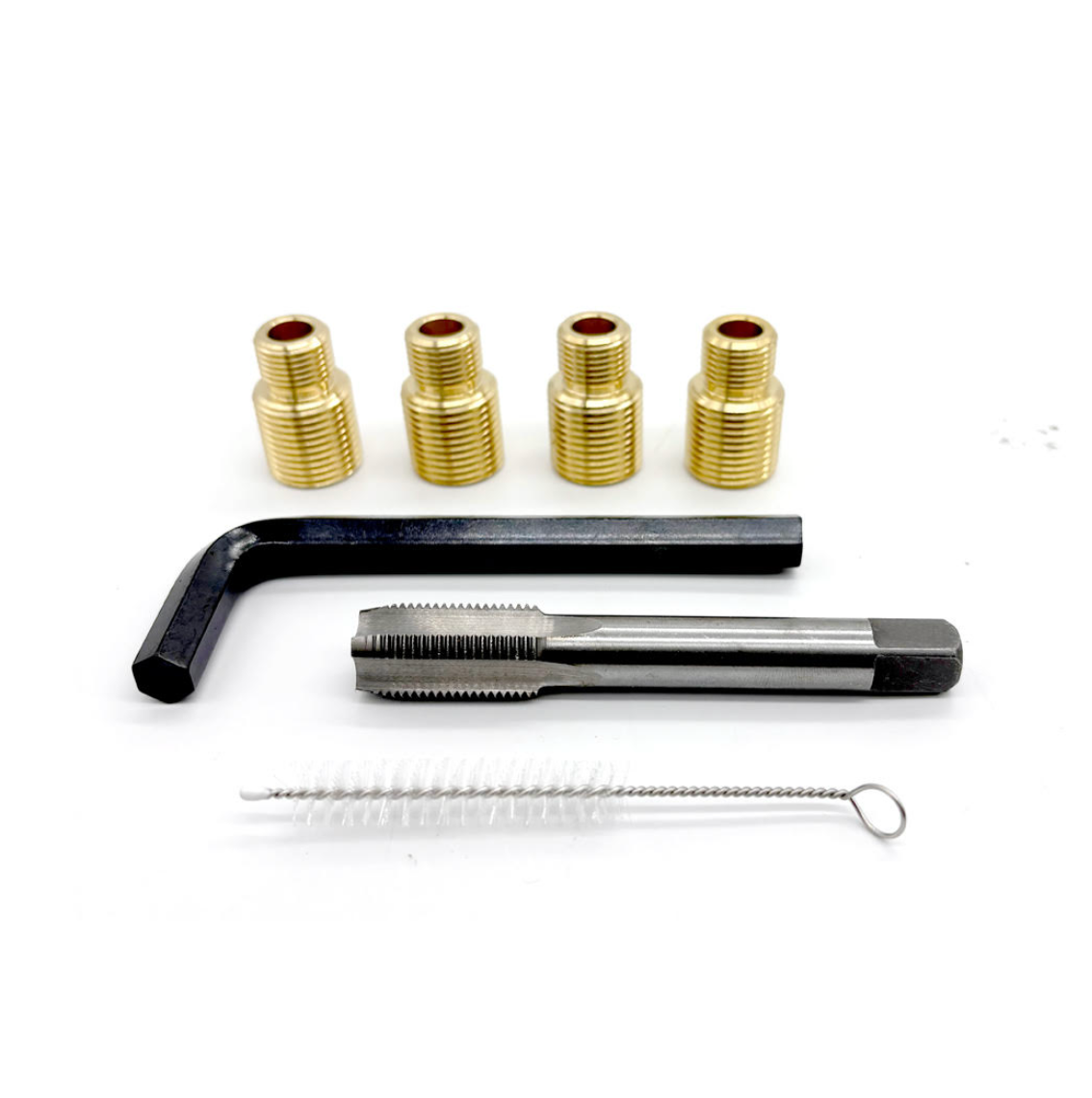

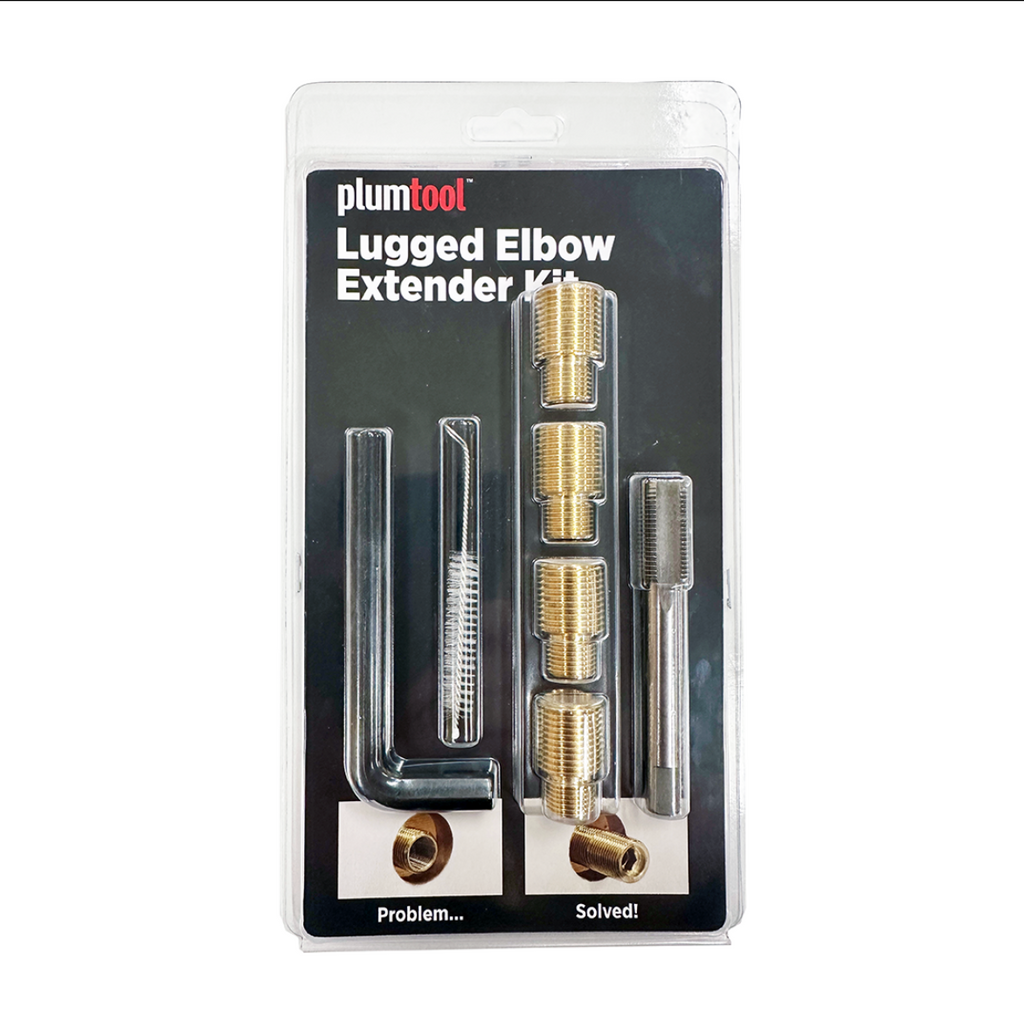

Kit Includes
- Lugged elbow extender
- Tap for cutting the internal thread
- Allen key
- Brush for cleaning brass burrs
- Installation instructions

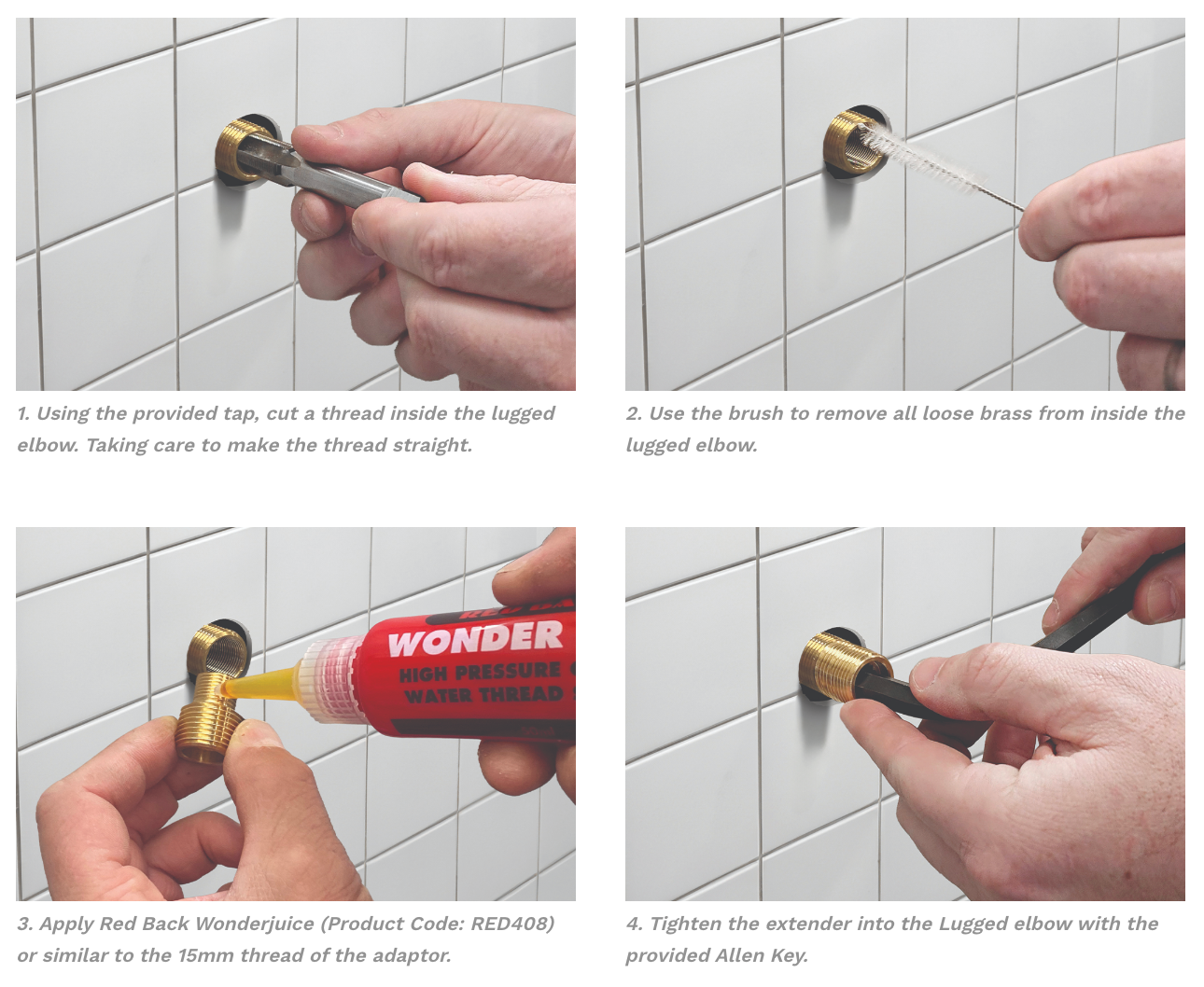

Installation Steps
- Use the tap tool to cut a straight internal thread inside the lugged elbow
- Clean out debris with the brush
- Apply a thread sealing compound to the adaptor's 15mm thread
- Tighten the extender into the lugged elbow using the supplied Allen key
Tip: keep the thread cutting straight and secure the component firmly for a solid, leak-free connection.
